Tecmark Air Transmitters are an essential component in Tecmark's pneumatic switching technology, LectricAir, that safely isolates the user from the electrical current. The hand or foot operated Air Transmitters provide the pulse air pressure needed to operate a remote air switch. Tecmark Series M Air Transmitters provide the air pressure needed to activate remote air switches which turn a variety of electrical devices on and off, including motors, lights, pumps, air blowers, or other associated equipment and are integral hot tub air transmitters and spa air transmitters.

Series MPT Air Transmitter

Typical Applications: commonly used as an interlock device to sense negative air or negative water pressure at a specific set point. Series VTBS3000 switches provide on/off control of a variety of electrical devices, including electric heaters and pumps in fluid flow systems as well as other electrical equipment.

Series V4000 Vacuum Switches convert a negative pressure signal to an electrical output. In response to a change in negative pressure, movement of an elastomeric diaphragm opens or closes an electrical circuit based on a predetermined pressure set point. The Series V4000 features cost effective, snap-acting electrical switches and field adjustable set points. Vacuum ranges from -2.5" (-600 Pa) Water Column (W.C.) to -10.75 PSI (-75 kPa) are available. Consult factory for vacuum levels outside listed ranges. Series V4000 switches assure control stability through wide and variable temperature and humidity conditions and assure uninterrupted service under extreme shock and vibration. As with all Tecmark® products, series V4000 switches provide superior performance and 100,000 cycle life under full mechanical, electrical and thermal loads.

TYPICAL APPLICATIONS:

Tecmark Series MPT Air Transmitters are an essential component in Tecmark's pneumatic switching technology, LectricAir, that safely isolates the user from the electrical current. The Series MPT Air Transmitters provide the pulse air pressure needed to operate a remote air switch. Tecmark Series MPT Air Transmitters provide the air pressure needed to activate remote air switches which turn a variety of electrical devices on/off, including motors, lights, pumps, air blowers, or other associated equipment and are integral hot tub air transmitters and spa air transmitters.

Series PT Air Transmitters

Tecmark Series PT Air Transmitters provide air pressure needed to activate remote air switches that turn a variety of electrical devices on and off, including motors, lights, pumps, air blowers, or other associated equipment. Tecmark Series PT Air Transmitters are integral hot tub air transmitters and spa air transmitters.

LectricAir Foot Switch

The Tecmark LectricAir Foot Switch makes operating power tools and other electrical devices safer by using an air-actuated switch system to isolate the user from the current, even in wet or hazardous environments.

SERIESCONSTRUCTIONKEY FEATURES

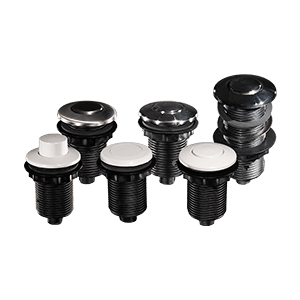

m series (push button)

Standard M series mounts through materials from 1/6" to 1 5/8" (1.6mm to 41mm) Extended M series Mounts through materials from 1/16" to 2 1/2" (1.6mm to 63mm) Field tested at temperatures of 0˚F to 200˚F (-17.8˚C to 93.3˚C)Interchangeable button and bezel kits Flat, Domed, and Raised buttons available

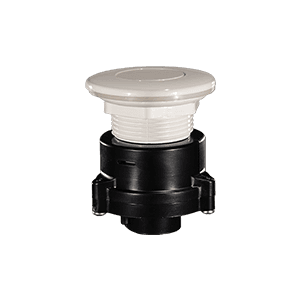

mpt series (push button)

Flexible plastic or rubber tubing connectors accept 1/8" (3.18mm) or 3/16" (4.76mm) I.D.Auxiliary fittings available Extender kit can accommodate thicknesses up to 1 1/2" (38.1mm)

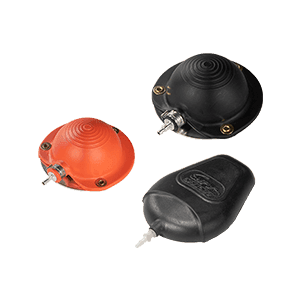

pt series (foot pedal)

Flexible plastic or rubber tubing connectors accept 1/8" (3.18mm) or 3/16" (4.76mm) I.D.Hand Operated Heavy Duty Light Duty
